CHALLENGER HD ROTARY TILLER CHALLENGER HD ROTARY TILLER

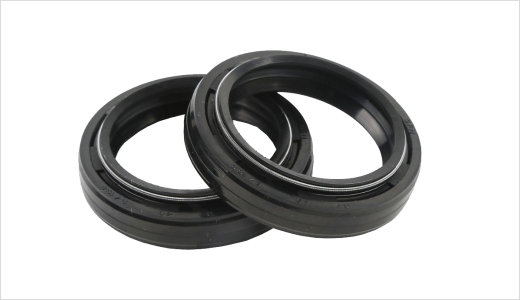

Duo cone mechanical oil seals

Duo cone mechanical oil seals

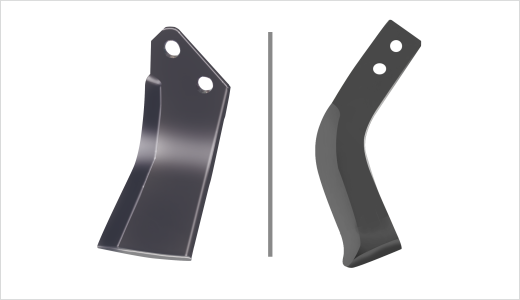

Available with L & C type boron steel blades

Available with L & C type boron steel blades

Bigger & Strong Crown & Pinion

Bigger & Strong Crown & Pinion

Heavy Duty Z Type Trailling Board

Heavy Duty Z Type Trailling Board

Oil Immersed Side Bearing

Oil Immersed Side Bearing

Salient Features:

  • Challenger HD rotary tiller is a secondary tillage implement offering best in class Pulverization and Optimum Seed Germination
  • Equipped with heavy duty multispeed gearbox for wider range of rotor speed
  • Ensures excellent cutting and mixing of crop residue
  • Renowned 13x23 Crown pinion for heavy duty work

Specifications

Product CHALLENGER HD ROTARY TILLER
Size Tillage width (in/cm) Total Width (in/cm) Total Length (in/cm) Height (in/cm) Weight (KG) Approx PTO Speed RPM No. Of Blades Types of Blades Suitable Tractor HP 3-Point Hitch Type Transmission type Rotor tube diameter (in/cm) Rotor Swing dia (in/cm) Driveline safety Device
5 Feet 59/149 70/179 35/90 44/112 410 540/1000 36 L 45+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
6 Feet 69/175 80/204 35/90 44/112 442 540/1000 42 L 55+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
7 Feet 79/200 90/230 35/90 44/112 484 540/1000 48 L 65+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
8 Feet 87/220 98/249 35/90 44/112 536 540/1000 54 L 75+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
9 Feet 106/269 118/298 35/90 44/112 570 540/1000 60 L 80+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
10 Feet 114/291 126/320 35/90 44/112 640 540/1000 66 L 90+ Cat-II GEAR 3.5/9 18/46 SHEAR BOLT
The Product Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
