Laser Leveler Laser Leveler

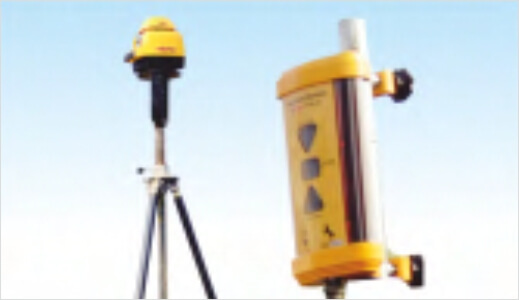

Tripod & receiver

Tripod & receiver

Laser transmitter

Laser transmitter

Automated power mast

Automated power mast

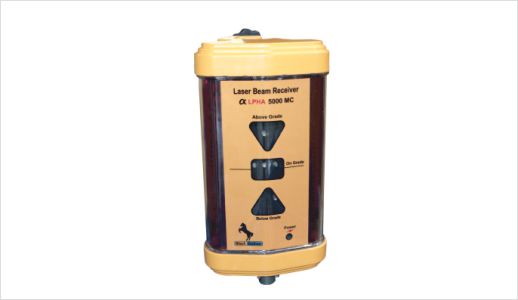

Reciever

Reciever

Salient Features:

  • Finest Touch Control for easy working.
  • Over voltage and Reverse DC polarity protection.
  • Field-Programmable Slope
  • All operations on control panel
  • Laser Level accuracy 1 mm at 30 meter & Battery backup for 3 days (depends upon uses)
  • Laser land leveler working under high temperature and magnetic field
  • High power laser beam working up to 900 meters.
  • Computerized self-calibration of laser land leveler in the field.

Specifications

Product Laser Leveler
Bucket (mm) 2086 (W) x 750 (D) x 630 (H)
Main Sheet Thickness (mm) 1
Side Sheet Thickness (mm) 10
Reversible Main Blade - Alloy Steel (mm) 2080 x 127 x 10
Reversible Side Plate Blade - Alloy Steel (mm) 505 x 100 x 8
Tyre Size 6 x 16
Tyre Manufacturer Goodyear
Hydraulic Cylinder Double Acting
Hydraulic Cylinder Capacity 6 metric Tonne
Weight (KG) 780
The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
