COMBINE HARVESTER COMBINE HARVESTER

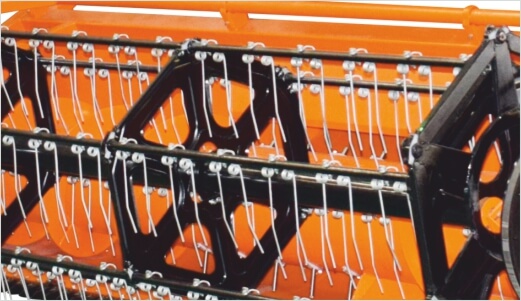

6 bat reel

6 bat reel

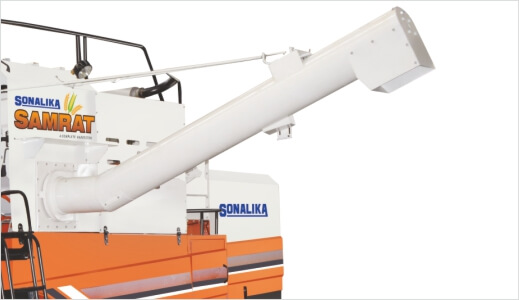

Grain unloading augur

Grain unloading augur

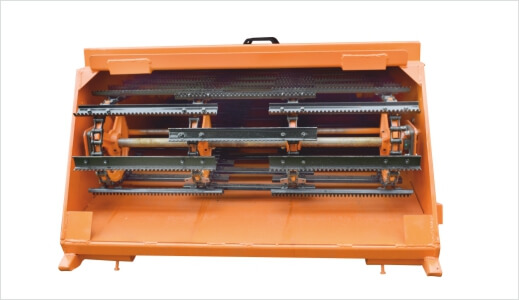

Heavy duty feeder with 4 chain & 60 feeder strips

Heavy duty feeder with 4 chain & 60 feeder strips

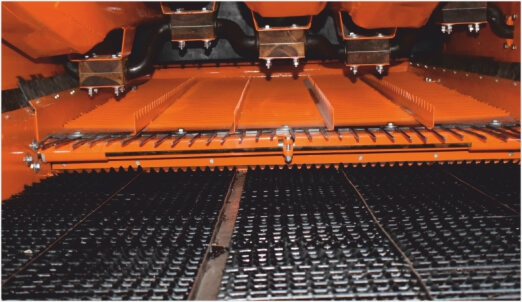

Large sieve area for optimum grain cleaning

Large sieve area for optimum grain cleaning

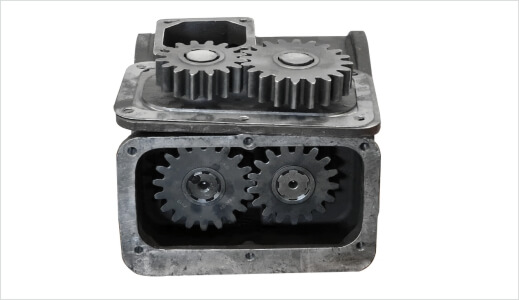

5 speed gear box

5 speed gear box

Salient Features:

  • Samrat is a self propelled wheel type combine harvester best suitable for harvesting of crops like Maize, Soyabean, Toor Dal, Dhania, Bajra, Wheat, Paddy, Moong, Corn, Barseem etc.
  • Higher power (133 HP) turbo charge Inter cooled engine.
  • Stainless steel parts in all grain touching areas.
  • Optional 4 wheel drive for better traction in semi-wet & wet fields.

Specifications

Product Combine Harvester
Power 133 HP BS-IV Engine
No. of Cylinders 6
Air Cleaner Dry Type
Cooling System Water Cooled
Clutch
Type of Clutch Single Heavy Duty Dry Type
Radius (mm) 330
Transmission
No. of Gears 4 Forward/1 Reverse
Gear Speed (km/hr)
Forward LOW High
1st Gear 1.8 2.9
2nd Gear 4 6.4
3rd Gear 7.25 11.6
4th Gear 15.9 25.5
Reverse 5.3 8.4
Cutter Bar Mechanism
For Wheat, Paddy & Others
Width (mm) 4.3
Cutting Height (mm) 65-1275
No. of Blades 58
No. of Guards 29
Stroke (mm) 85
Reel Speed 20-55
Reel Dia (mm) 915
Feeder Housing Chain Type Feeder
Threshing Mechanism
Thresher Drum Wheat(Reap Bar) Paddy(Peg Tooth) Maize(Peg Tooth)
Width (mm) 1250 1250 1250
Diameter of Drum (mm) 605 605 605
Speed RPM 540-1200
Speed Adjustment By means of mechanical variation
Maize
Cutter Bar Working Width 3.4 m, 3.12m
No. of Rows 5/6/7
Spacing of Rows (mm) 457.2 (18") 609.6 (24") 762 (30")
No. of Straw Walker 5
No. of Steps 5
Length (mm) 3770
Width (mm) 235
Cleaning Sieves
Area
Upper Sieve Area (m²) 2.42
Lower Sieve Area (m³) 1.77
Capacity
Grain Tank (Cubic mtr.) 2.6
Fuel Tank (Itr.) 365
Battery
No. of Batteries 2
Capacity & Rating of Each Battery 12V, 110 AH
Tyre Size Ply Rating
Front 18.4-30 12 pr/14 pr
Rear 9.00-16 16 pr
Main Dimensions (Approx.)
In Working
Length (mm) 8370
Width (mm) 4665
Height (mm) 3850
Ground Clearance (mm) 370
In Transport
Length (mm) 12450
Width (mm) 3035
Height (mm) 3850
Total Weight (Kg.) Approx. 9120 with trailer
The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
