PRIMA ROTAVATOR

Salient Features:

Prima rotary tiller is a secondary tillage implement offering best in class pulverization and optimum seed germination.
Robust hitch pyramid for better load distribution
Equipped with heavy duty multispeed gearbox (4 speed) for wider range of rotor speed

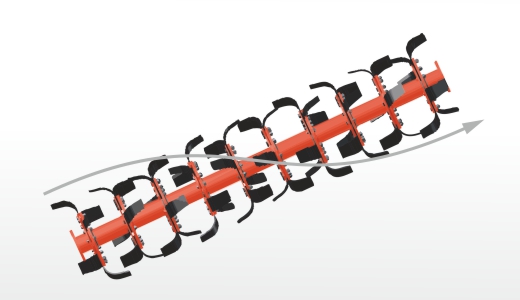

Ensures excellent cutting and mixing of crop residue
In built 2 Gear Pair which allows 4 different rotor RPM.

Specifications

Product	PRIMA ROTARY TILLER
Size	4 Feet	5 Feet	5.5 Feet (36 blades)	5.5 Feet (39 blades)	5.5 Feet (42 blades)	6 Feet	7 Feet	5.5 Feet	6 Feet	5.5 Feet	6 Feet
Tillage width (in/cm)	47/120	59/149	66/168	66/168	66/168	69/175	79/200	66/168	69/175	66/168	69/175
Total Width (in/cm)	58/148	58/148	77/196	77/196	77/196	80/204	90/230	77/196	80/204	77/196	80/204
Total Length (in/cm)	35/90	35/90	35/90	35/90	35/90	35/90	35/90	35/90	35/90	35/90	35/90
Height (in/cm)	44/111	44/111	44/111	44/111	44/111	44/111	44/111	44/111	44/111	44/111	44/111
Weight (KG) Approx	300	300	415	435	450	430	450	435	440	420	430
PTO Speed RPM	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000

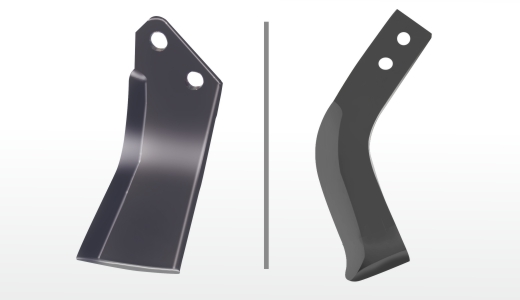

L Type Blade	30	30	36	39	42	42	48	X	X	X	X
J Type Blade	X	X	X	X	X	X	X	66	72	X	X
Pocket Type	X	X	X	X	X	X	X	X	X	48	52
Suitable Tractor HP	30+	30+	35+	40+	40+	40+	45+	40+	40+	40+	40+
3-Point Hitch Type	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II
Transmission Type	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR	GEAR
Rotor tube diameter (in/cm)	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3/7.5	3/7.5	3/7.5	3/7.5
Rotor Swing dia (in/cm)	18/46	18/46	18/46	18/46	18/46	18/46	18/46	20.5/52	20.5/52	20.5/52	20.5/52
Driveline safety Device	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT
The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
